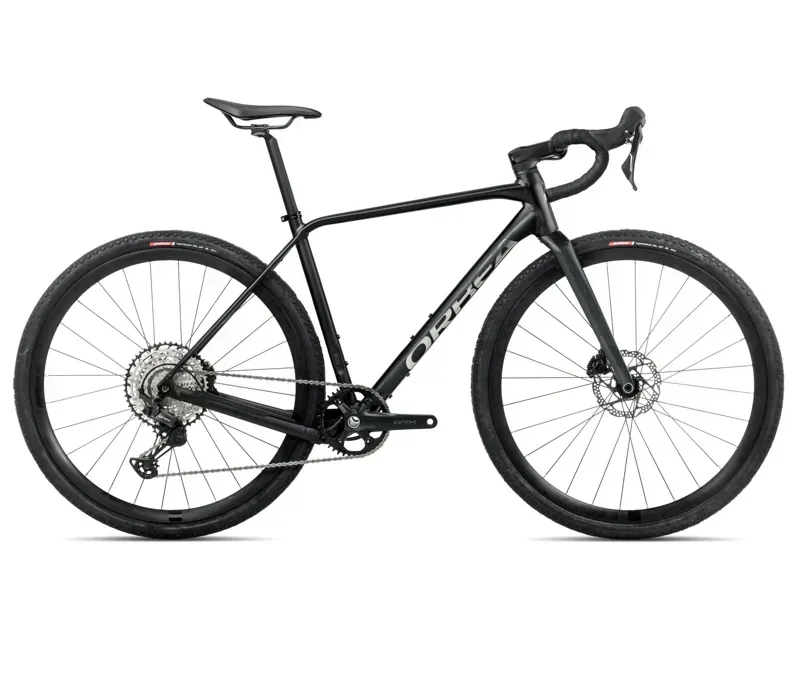

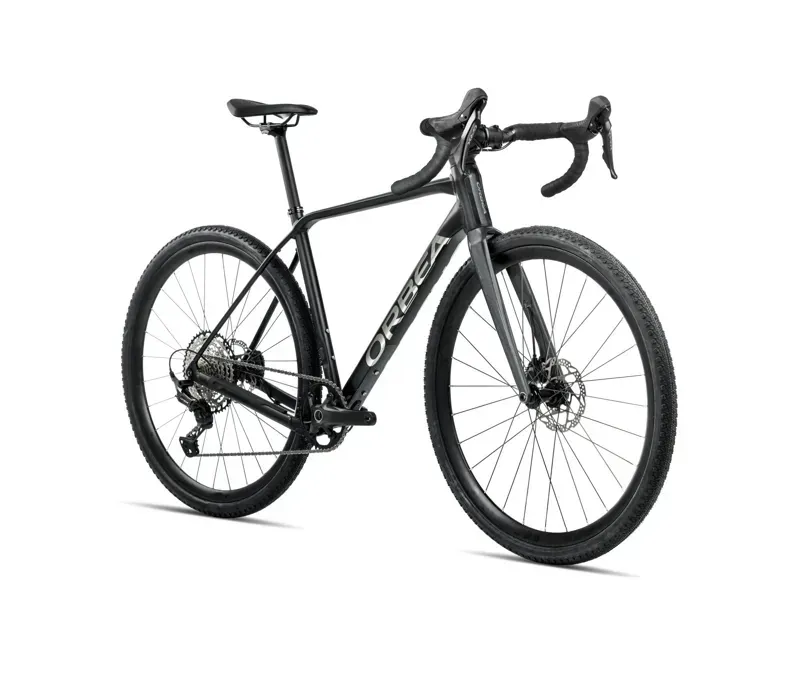

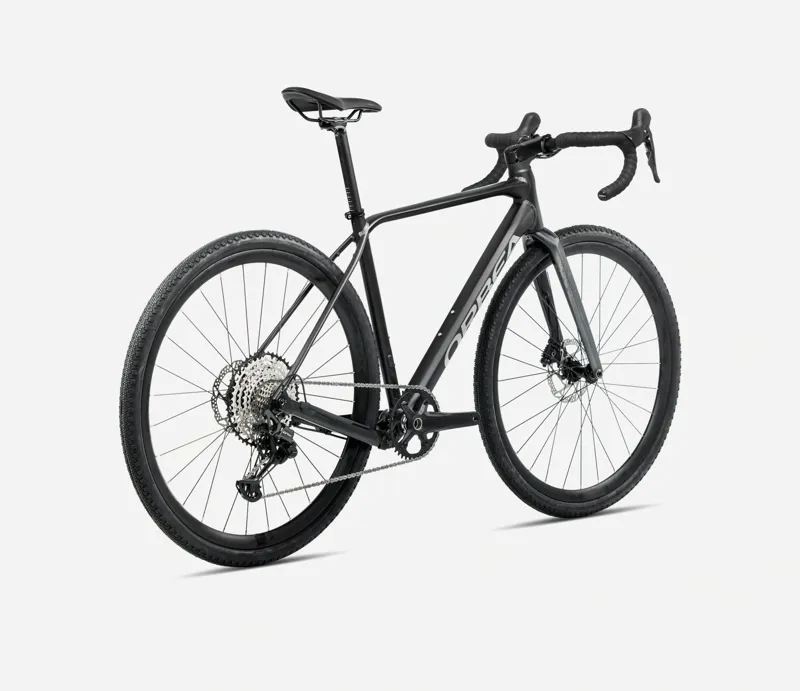

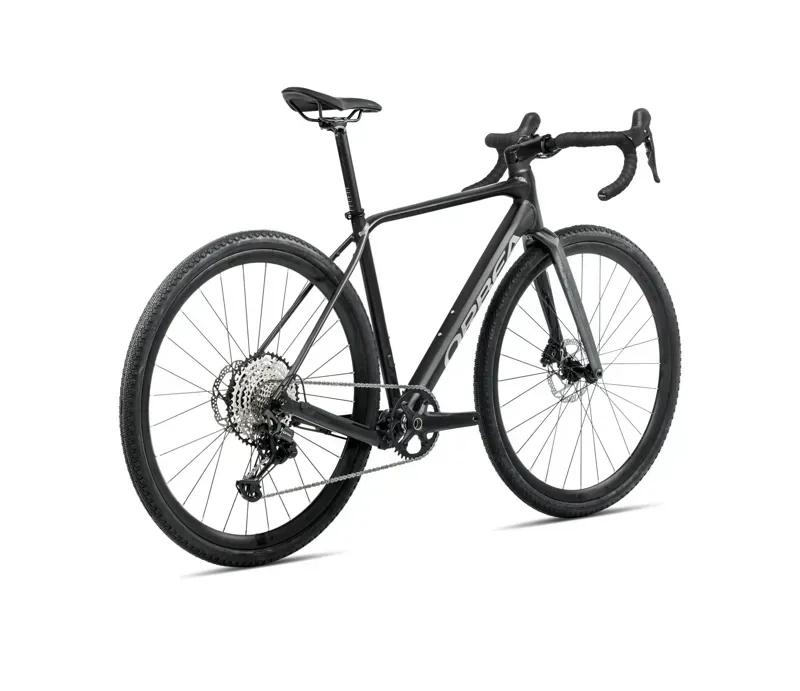

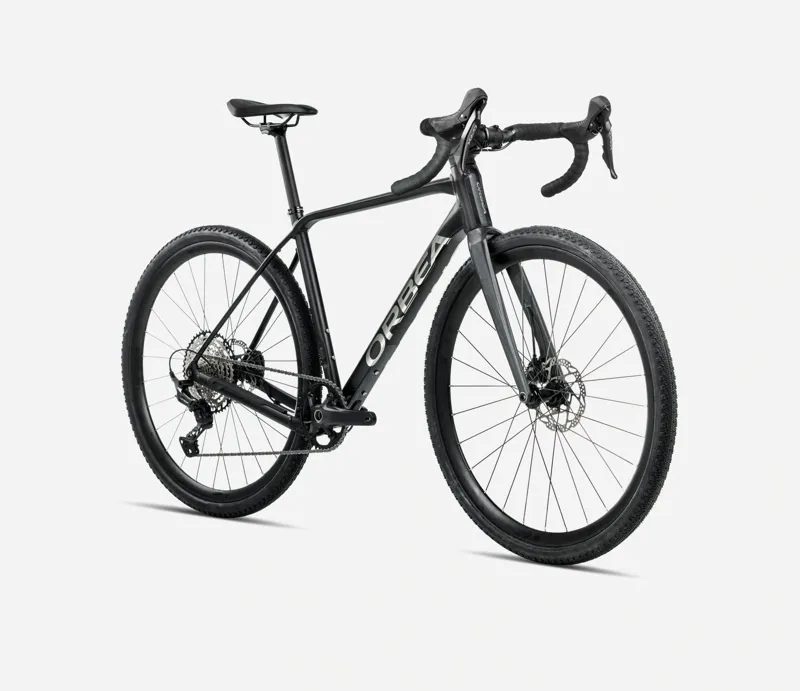

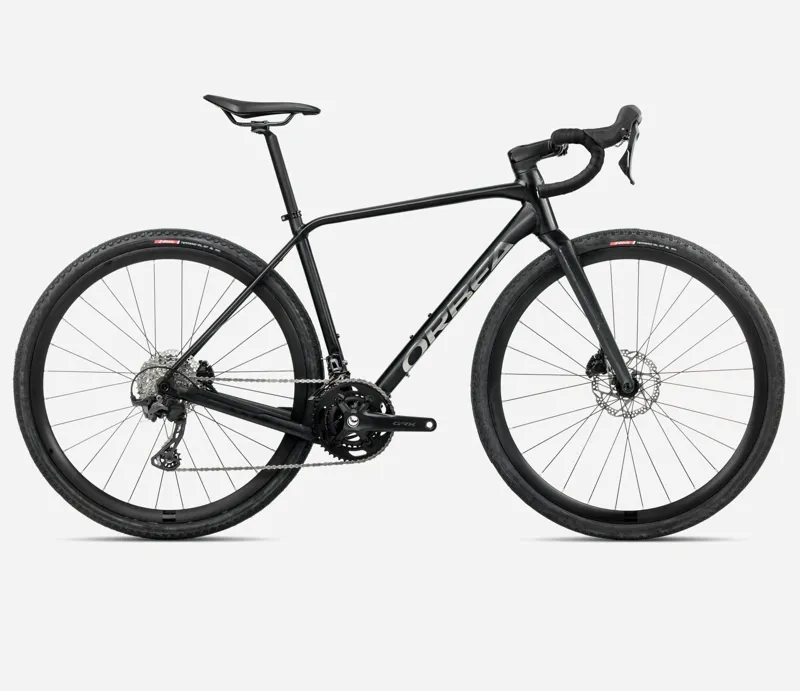

Orbea Terra H30 in Diamond Black

Brand:Orbea

Code:26-ORBEA-TERRA-H30-DIA

Boundless freedom lies in uncharted paths, where vastness is the challenge and each pedal stroke takes you deeper into a labyrinth of possibilities.

It is not just a ride; it is an invitation to explore nature’s endless horizons. Orbea's frame design provides a range of drivetrain options without compromising tire clearance.

Features:

  • Tire clearance for 700c x 45 tires for speed and efficiency on dirt roads, or 650b x 50 treads for extreme durability and high-volume comfort.
  • Designed to offer a range of drivetrain options without compromising tire clearance.
  • The carbon frame offers a storage area inside the downtube, hidden behind the water bottle cage, with space for a tube, pump, CO2 cartridge, or tools.
Technical Information
  • Frame
    Orbea Terra Hydro disc, hydroformed triple butted aluminum, HS 1.5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27.2mm seat tube, MMS system
  • Fork
    Orbea Terra ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
  • Steerer tube
    FSA 1-1/2" Integrated Aluminum Cup
  • Crankset
    Shimano GRX RX610 30x46t
  • Shifters
    Shimano GRX RX610
  • Cassette
    Shimano HG710 11-36t 12-Speed
  • Rear derailleur
    Shimano GRX RX820
  • Front derailleur
    Shimano GRX RX820
  • Chain
    Shimano M6100
  • Handlebar
    OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
  • Stem
    OC Road Performance RP23, -5º
  • Brakes
    Shimano RX410 Hydraulic disc
  • Wheels
    Alloy, Tubeless, 700c, 21c
  • Tires
    Vittoria Terreno T30 fine loose Gravel 700x40c
  • Tire clearance
    700c x 45 or 650b x 50
  • Front wheel axle
    Orbea Thru Axle 12x100mm M12x2 P1 Solid
  • Rear wheel axle
    Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
  • Seatpost
    SP 0.2 Carbon, 27.2mm, Setback 20
  • Saddle
    Fizik Terra Argo X7 Aluminum Rail 150mm
  • Handlebar tape
    Orbea Eva
Sizing Information

Recommended Rider Height

Size Height (in)
XS 61.1" - 65.4"
S 65.7" - 67.7"
M 68.1" - 70.5"
L 70.9" - 72.8"
XL 73.2" - 75.2"
XXL 75.6" - 81.5"

*Estimated measurements

Geometry

Orbea Terra Geometry Diagram
Size Seat Tube (mm) Top Tube (mm) Head Tube (mm) Chainstay (mm) BB Drop (mm) BB Height (mm) Wheelbase (mm) Head Angle Seat Angle Rake Standover (mm) Reach (mm) Stack (mm) Fork Length (mm) Trail (mm)
XS 425 526 110 430 78 263/278 1020 70º 74º - 704/718 375 526 390 66/71
S 458 539 131 430 78 263/278 1030 70.5º 74º - 731/746 382 548 390 62/68
M 491 558 152 430 78 263/278 1039 71º 73.5º - 759/773 389 570 390 59/64
L 524 570 178 430 76 265/280 1054 71º 73.5º - 788/803 395 592 390 59/64
XL 557 590 199 430 76 265/280 1063 71.5º 73º - 815/830 402 614 390 56/61
XXL 590 603 220 430 76 265/280 1072 72º 73º - 838/853 409 636 390 53/58
