The Kona Honzo ESD is an exercise in barely restrained aggression. Built with a cromoly steel frame and geometry derived from the Process X, this bike is designed for those who want to punish the trails.
The Kona Honzo ESD is an exercise in barely restrained aggression. Built with a cromoly steel frame and geometry derived from the Process X, this bike is designed for those who want to punish the trails.
Kona

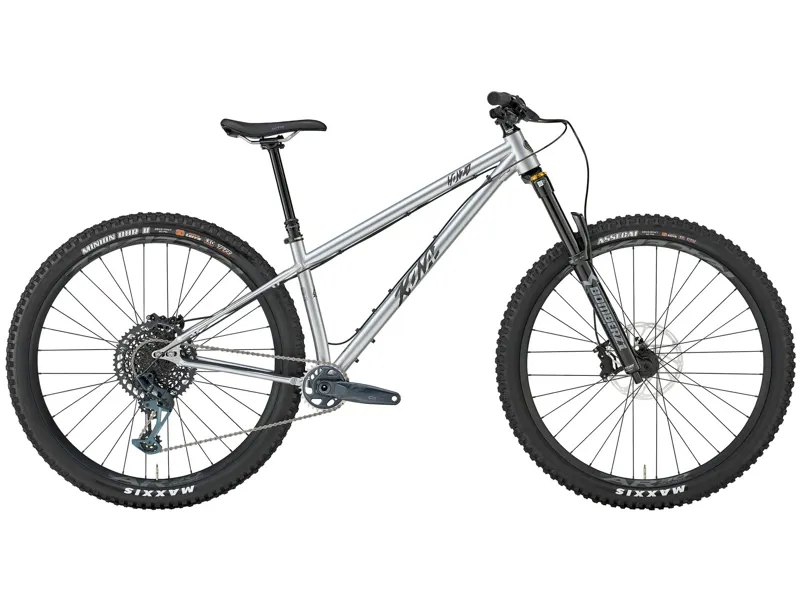

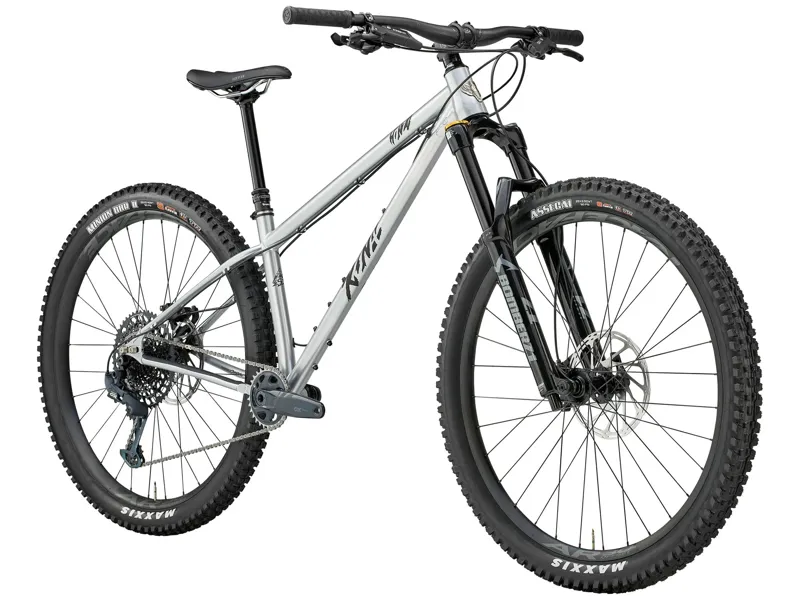

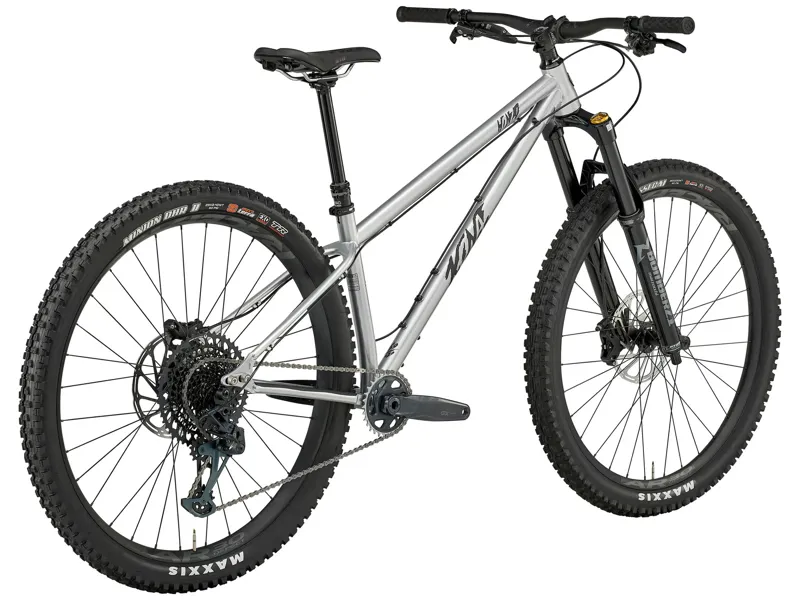

Kona Honzo ESD Bike Large in Silver

$2,399.00
Size Guide
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Returns and Shipping

SHIPPING (Continental U.S.)

  • Once placed, most online orders ship within one to two business day. Bike purchases that require shipment will take an additonal two to four days for processing and packaging. Orders placed after 12pm CST on Fridays through Sundays will process on the following Monday.
  • Please note that some items may be subject to additional shipping and handling charges because of size or weight.
  • We do not ship outside of the Continental U.S.

IN-STORE PICKUP

Most orders will be ready within one business day. Please keep in mind that some items may require additional processing time to assemble. We will call, text or email you once your order is ready for pickup. If you need an item right away we ask that you call us to confirm that the product is available before heading over to our store. Unless special arrangements are made in advance, orders must be picked up within 30 days, after which time the items will be returned to the shop and in-store credit issued under the purchaser's name.

BACKORDERS

Occasionally, some items are unexpectedly out of stock or unavailable and may be backordered. If this should occur, we will only bill your credit card for merchandise that is actually shipped. The total shipping charge for orders split into multiple shipments will not exceed the amount quoted on original order.

RETURNS

We hope you love your purchase from Pete's Garage, but if you don't we'll make every effort to exchange or refund your purchase. Please see below for details of our return policy:

  • All bicycle sales are FINAL.
  • Full priced items are eligible for exchage or refund within 30 days of the purchase. Eligible items must remain in new, unused condition with all original packaging intact. Proof of purchase required.
  • Sale items are eligable for in-store credit or exchange only. Proof of purchase required.
  • Closeout items or clearance items (defined as any items marked below 50% of MSRP) are FINAL SALE.
  • Specail order items are subject to a 20% restocking fee upon return.

For orders placed online, please contact us to initiate return or exchange your item. Web orders may be brought to the store or sent to:

Pete's Garage
Attn: Website Returns
142 N. Broadway
Green Bay, WI 54303

Return shipping costs are the purchasers responsibility and will not be provided by Pete's Garage.

SPECIAL ORDERS

Payment in full is required before special orders will be placed. Returns on special order items will be subject to a 20% restocking fee.

WARRANTY CLAIMS

Warranty claims will be addressed in a manner consistent with the manufacturer's guidelines and only on items purchased at Pete's Garage. In instances where the manufacturer does not cover labor, charges will apply to execute warranty repairs.

PRICES AND INFORMATION

This website is intended to help you. We make every effort to maintain current, accurate prices in our on-line catalog. And we strive for similar accuracy and timeliness with the other information we offer here. We appreciate your understanding should any of the prices or other information provided be incorrect and regret any inconvenience such mistakes may create. All prices are subject to change at any time, and unfortunately we cannot honor any previous pricing once a change is made. Please bring any errors you may find to our attention on your next visit or by calling or sending us an e-mail.

Kona Honzo ESD Bike Large in Silver

Brand:Kona

Code:B36HZESLSRFA05

The Kona Honzo ESD is an exercise in barely restrained aggression.

Kona initially built the Honzo ESD as a test case for the long and low geometry developed for the Process X. Most hardtails tend to be somewhat conservative in their geometry, but the Honzo ESD is anything but that. Its cromoly steel frame features a head and seat angle that would be right at home on a modern long travel full suspension bike. Wrapped around a 150mm fork, 4-piston brakes front and rear, and shod with meaty Maxxis rubber, the Honzo ESD is designed for those who want to punish the trails.

If Mad Max rode a bike, it would be the Honzo ESD. It is part Honzo, part monster, and with geometry derived from the Process X, it is built for aggressive riding.

Features:

  • 63.5° headtube angle with a 150mm reduced offset fork for aggressive descending
  • Marzocchi Z1 Bomber fork
  • Longer reach for stability at high speeds
  • 435mm chainstays for increased handling stability
  • Adjustable 148X12 thru-axle
  • Custom headtube badge
  • Short seat tube for maximum travel dropper posts
  • Steep seat tube for efficient climbing
Technical Information
  • Frame Material
    Kona Cromoly Butted
  • Sizes
    S, M, L, XL
  • Fork
    Marzocchi Bomber Z1 Grip Damper 150mm Tapered 110mm Spacing
  • Crankarms
    SRAM GX Eagle
  • Chainrings
    30t X-Sync Eagle
  • Bottom Bracket
    SRAM DUB 73mm
  • Chain
    SRAM NX Eagle
  • Cassette
    SRAM GX 10-52t 12spd
  • Chainguide
    MRP
  • Rear Derailleur
    SRAM GX Eagle
  • Shifters
    SRAM GX Eagle
  • Brake Calipers
    SRAM DB8
  • Front Brake Rotor
    SRAM Centerline 200mm
  • Rear Brake Rotor
    SRAM Centerline 200mm
  • Brake Levers
    SRAM DB8
  • Headset
    FSA Orbit 1.5 E ZS
  • Handlebar
    Race Face Aeffect R 35
  • Stem
    Race Face Aeffect R 35
  • Seatpost
    TranzX Dropper +RAD Internal 31.6mm
  • Seat Clamp
    Kona Clamp
  • Grips
    Kona Key Grip
  • Saddle
    WTB Volt
  • Front Hub
    Race Face AR 30 110x15mm
  • Rear Hub
    Race Face AR 30 148x12mm
  • Spokes
    Stainless Black 14g
  • Rims
    Race Face AR 30
  • Front Tire
    Maxxis Assegai EXO TR 3C 29x2.5" WT
  • Rear Tire
    Maxxis Minion DHR II EXO TR 3C 29x2.4" WT
Sizing Information

Mountain Bike Sizing Guide

Size Height (In) Height (cm) Inseam (In) Inseam (cm)
XS 4'10"-5'1" 147-155cm 24"-27" 61-69cm
Small 5'0"-5'3" 152-160cm 26"-29" 66-74cm
Small/Medium 5'2"-5'7" 157-170cm 27"-30" 69-76cm
Medium 5'6"-5'10" 168-178cm 29"-31" 74-79cm
Medium/Large 5'9"-6'0" 175-183cm 30"-33" 76-84cm
Large/XL 5'11"-6'2" 180-188cm 32"-35" 81-89cm
Large/XL 6'1"-6'5" 185-196cm 33"-36" 84-91cm

Geometry Specifications

Measurement S M L XL
ST Length 380 380 420 450
TT Length 578 605 633 670
Reach 440 465 490 525
Stack 625 634 643 652
Standover 712 710 709 706
HT Angle 63.0 63.0 63.0 63.0
HT Length 90 100 110 120
ST Angle 77.5 77.5 77.5 77.5
CS Length 417 417 417 417
BB Drop 62.5 62.5 62.5 62.5
BB Height 312.5 312.5 312.5 312.5
Wheelbase 1186 1216 1245 1285
Front Center 776 806 835 875
Fork Length 560 560 560 560
Fork Offset 42 42 42 42
